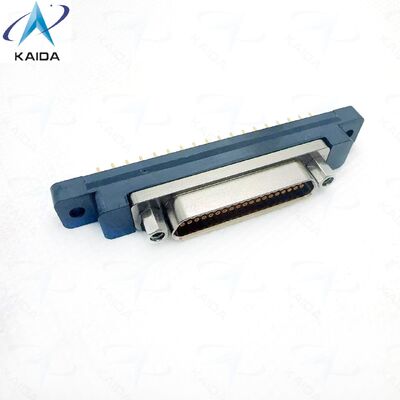

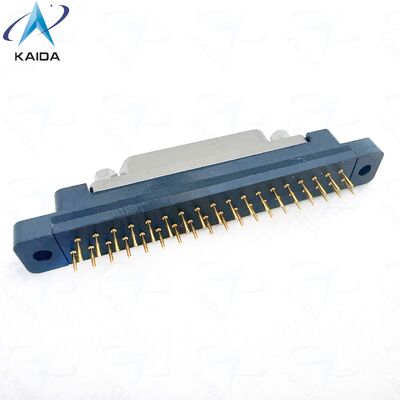

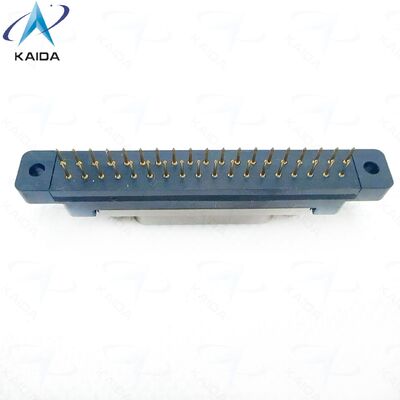

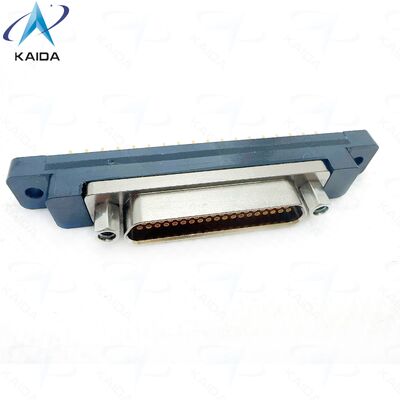

Part Number M8351325F02NP Metal Shell Utilizing Electroless Nickel Material Engineered for Connector Housing Performance.MIL-DTL-83513 Series.

Part Number:M83513/25-F02NP


Product Description:

The MIL-DTL-83513 Micro-D Connectors are a high-performance interconnect solution designed to meet the demanding requirements of military, aerospace, and other rugged applications. Renowned for their reliability and durability, these connectors are part of the prestigious M83513 series, which has become a standard in the industry for compact, high-density connections. The connectors are engineered to provide secure, stable, and long-lasting electrical connections in environments where space is limited but performance cannot be compromised.

One of the standout features of the MIL-DTL-83513 Micro-D Connectors is their robust construction, which includes a metal shell made from Electroless Nickel-plated material. This metal shell not only enhances the mechanical strength of the connector but also provides excellent resistance to corrosion and wear, ensuring longevity even in harsh environments. The Electroless Nickel finish offers a smooth, uniform coating that protects the connector from oxidation and other forms of environmental degradation, making it ideal for use in aerospace, defense, and industrial applications where reliability is critical.

The connectors in the M83513 series are designed to handle a voltage rating of up to 500 volts, making them suitable for a wide range of electrical applications. This high voltage rating ensures safe and efficient transmission of electrical signals and power, while maintaining the integrity of the connection under various operating conditions. Additionally, these connectors are rated for a current of 3 amperes, enabling them to support moderate power loads without compromising performance or safety.

Durability and longevity are key attributes of the MIL-DTL-83513 Micro-D Connectors. They are rated for up to 500 mating cycles, which means they can be connected and disconnected multiple times without degradation in performance. This high mating cycle rating is particularly important in applications where connectors need to be frequently assembled and disassembled for maintenance, testing, or system upgrades. The ability to withstand repeated use without failure reduces downtime and maintenance costs, contributing to overall system reliability.

The electrical contacts within these connectors are plated with gold over nickel, providing excellent conductivity and corrosion resistance. Gold plating ensures low contact resistance and prevents oxidation of the contact surfaces, which is crucial for maintaining consistent signal quality and electrical performance over time. The underlying nickel layer adds mechanical strength and further protects the contacts, combining to create a reliable electrical interface that performs well even in challenging environments.

Overall, the MIL-DTL-83513 Micro-D Connectors from the M83513 series are engineered to deliver exceptional performance in a compact form factor. Their metal shell made of Electroless Nickel, combined with gold over nickel contact plating, provides a resilient and dependable connection solution. With a voltage rating of 500V, a current rating of 3A, and a robust mating cycle rating of 500 cycles, these connectors are ideally suited for applications demanding high reliability, durability, and electrical integrity.

Whether used in military avionics, aerospace systems, industrial machinery, or other high-reliability applications, the MIL-DTL-83513 Micro-D Connectors stand out as a trusted choice for engineers and designers. Their combination of rugged construction, high electrical performance, and proven durability ensures that systems built with these connectors will operate smoothly and dependably, even under the most challenging conditions. The M83513 series continues to set the standard for Micro-D connectors, delivering unmatched quality and performance in a compact, easy-to-use package.

Features:

• Product Name: MIL-DTL-83513 Micro-D Connectors
• Part Number: M83513/25-F02NP
• Series: M83513 series
• Operating Temperature Range: -55 to +125°C
• Gender: Receptacle
• Shell Material: Aluminum with Electroless Nickel plating
• Contact Material: Copper Alloy

Technical Parameters:

Applications:

The KAIDA M83513/25-F02NP Micro-D Connector, compliant with the MIL-DTL-83513 military specification, is engineered for demanding applications requiring reliable and compact interconnect solutions. Its robust design features a metal shell constructed from electroless nickel, ensuring exceptional durability and corrosion resistance in harsh environments. The gold over nickel contact plating enhances conductivity and minimizes signal loss, making it ideal for high-performance electronic systems.

This Micro-D connector's receptacle is designed to provide secure and stable connections in applications where space and weight are critical factors. With a current rating of 3 A, it supports moderate power transmission needs while maintaining a small form factor. The metal shell with electroless nickel plating not only protects the connector from physical damage but also offers electromagnetic interference (EMI) shielding, which is crucial in sensitive electronic equipment.

The KAIDA M83513/25-F02NP is widely used in aerospace and defense sectors, where MIL spec compliance and ruggedness are mandatory. It is suitable for avionics systems, military communication devices, and unmanned aerial vehicles (UAVs) that operate under extreme conditions. The connector’s compact receptacle design allows for easy integration into confined spaces without compromising performance.

In addition, this connector is well-suited for industrial automation and medical instrumentation applications, where reliable signal integrity and durability are essential. The electroless nickel metal shell offers resistance against moisture, chemicals, and mechanical wear, ensuring long-term operational stability. Its high-quality gold over nickel contacts provide consistent electrical performance over repeated mating cycles.

Overall, the KAIDA M83513/25-F02NP Micro-D Connector is an excellent choice for engineers and designers seeking a dependable, space-saving interconnect solution that meets stringent military specifications. Its combination of electroless nickel plated metal shell, precision receptacle design, and superior contact plating makes it versatile for use in rugged environments and mission-critical electronic systems.

Customization:

KAIDA offers product customization services for the MIL-DTL-83513 Micro-D Connectors, specifically the M83513/25-F02NP model. This receptacle connector, part of the M83513 series, is designed to operate reliably within a temperature range of -55 to +125°C. It features a durable shell made from Electroless Nickel plating over Aluminum, ensuring excellent corrosion resistance and long-lasting performance. The contacts are plated with gold over nickel to provide superior conductivity and durability. Manufactured in China, this connector combines high-quality materials and precise engineering to meet rigorous military and industrial standards. Customization options are available to tailor the connector to specific application requirements, making the M83513/25-F02NP a versatile and dependable choice for demanding environments.

Support and Services:

Product Technical Support and Services for MIL-DTL-83513 Micro-D Connectors include comprehensive assistance to ensure optimal performance and reliability of the connectors in military and aerospace applications. Our technical support team provides detailed product information, application guidance, and troubleshooting to address any challenges encountered during installation or operation.

We offer customization services to tailor Micro-D connectors to specific requirements, including variations in shell sizes, plating options, contact arrangements, and cable assemblies. Our engineering experts work closely with customers to develop solutions that meet stringent environmental and mechanical specifications.

Additional services include product qualification testing, reliability analysis, and documentation support to facilitate compliance with MIL-DTL-83513 standards. We also provide training resources and technical literature to enhance user knowledge and proficiency in handling Micro-D connectors.

Maintenance and repair services are available to extend the lifecycle of Micro-D connectors, ensuring sustained performance in demanding environments. Our support infrastructure is committed to delivering timely and effective solutions to maximize connector uptime and system integrity.

Packing and Shipping:

All MIL-DTL-83513 Micro-D connectors are carefully packaged to ensure protection against damage during handling and shipping. Each connector is individually sealed in anti-static bags to prevent contamination and electrostatic discharge. Multiple units are then placed in cushioned cartons designed to absorb shocks and vibrations encountered during transit.

Shipping is conducted through reliable carriers with tracking options to guarantee timely and secure delivery. Packaging complies with all applicable military and international shipping standards, ensuring the connectors arrive in optimal condition and ready for immediate use.

FAQ:

Q1: What is the brand name of the M83513/25-F02NP Micro-D Connector?

A1: The brand name of the M83513/25-F02NP Micro-D Connector is KAIDA.

Q2: Where is the KAIDA M83513/25-F02NP Micro-D Connector manufactured?

A2: The KAIDA M83513/25-F02NP Micro-D Connector is manufactured in China.

Q3: What type of connector is the M83513/25-F02NP?

A3: The M83513/25-F02NP is a Micro-D connector, designed for high-reliability applications requiring a compact and durable interconnect solution.

Q4: What are the typical applications for the KAIDA M83513/25-F02NP Micro-D Connector?

A4: The KAIDA M83513/25-F02NP Micro-D Connector is commonly used in aerospace, military, and other high-performance electronic systems due to its robust design and reliable performance.

Q5: What are the key features of the KAIDA M83513/25-F02NP Micro-D Connector?

A5: Key features include a compact size, high-density contact arrangement, strong resistance to vibration and shock, and compliance with MIL-DTL-83513 standards.
